Biomass and Granulates Moisture Meter – M75

The M75 is a high precision moisture meter for biomass, wood chips, sawdust, harvesting residues, sugarcane bagasse, animal feed.

Biomass and Granulates Moisture Meter - M75 Quote Equipment

What is the moisture meter for biomass and granulates m75?

The M75, also popularly known as “bucket”, moisture meter for biomass and granulates, is a unique product on the market. Its high technology, precision and reliability resulted in large national and international companies adopting it as a primary moisture meter.

More why is the M75 humidity meter so accurate and reliable?

Because it works via calibration curve and recipes. And as a result, the more you use the bucket, the more accurate it will be!

Why do large companies use and recommend the M75?

Because it offers moisture information at the time. And better yet, it offers the PCU (useful calorific power) of the material being measured. In short, when buying chips or any other organic material for burning for power generation, you may be purchasing by PCU, i.e. you buy the energy and not the water that is contained in the material or total weight.

How do you calibrate the M75?

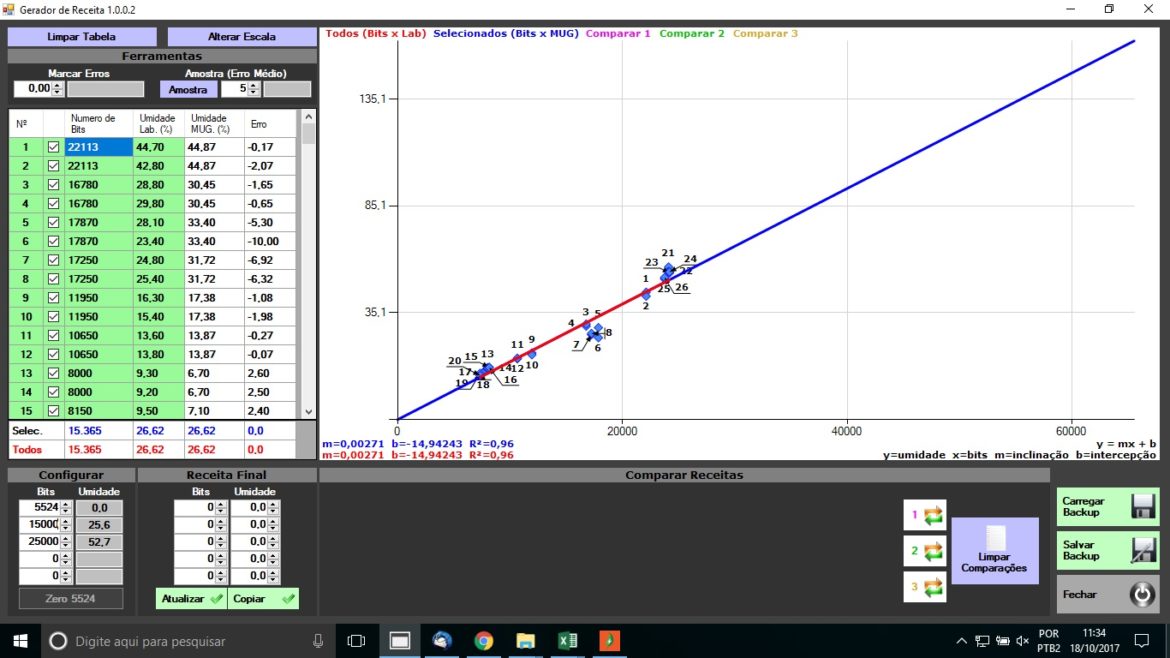

Very simple! by our software umidata. Each time you make a measurement, it is saved to the device. After that, you can download this data to a PC where our software will collect the data and you can create your curve for a particular recipe (product).

What else does this umidata offers?

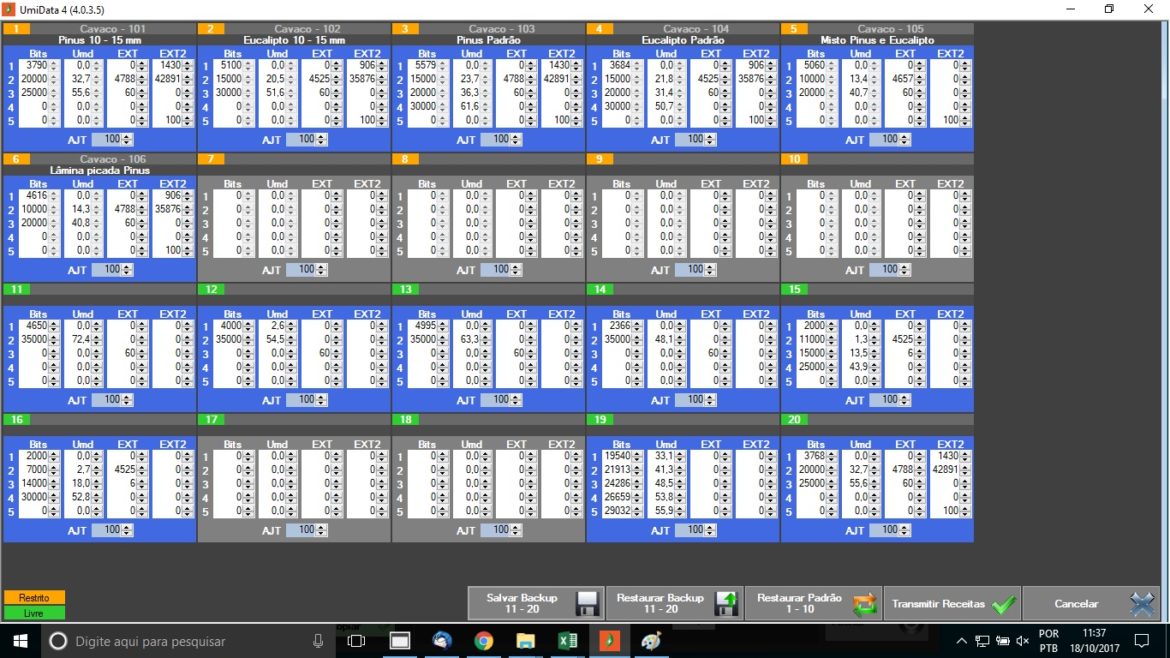

It is a powerful tool for storing data collected by the meter and downloaded via USB to a PC, where you can also check and create calibration curves for your recipes.

This data can then be demonstrated in various types of charts, historical and exported in Excel or other types of files.

and If I want to buy the meter with a recipe ready for my product?

Just send a sample of your product to us at Marrari. More specifically Umilab, where we will create a specific recipe for you according to the lab!

And we can also calibrate and re-calibrate your equipment!

Contact us to find out more!

And why use the Marrari equipment?

Because our equipment is optimized for your company! We create ways to improve the performance of production processes without excessive loss using methods such as OEE and Industry 4.0. Thus creating a more efficient, productive and modern production environment!

If you want to know more about us and our gauges, visit our Facebook or LinkedIn.

Want to know more technical information about the meter? Check below for more information! and ask for your budget!

FEATURES

  • Reading the MOISTURE content
  • Calculation of the  PCU (useful calorific value)
  • Pre-calibrated for 05 materials
  • Programmable Calibration Curves (15)
  • Significant sample volume
  • Record up to 1,000 readings
  • Readings divided into up to 100 batches
  • Date and time record of the readings
  • High Visibility Display (OLED)
  • Local programming or via PC
  • Reports: batch, period, vendor
  • Software for reporting,
  • Calibration software and statistics
  • Software for calculation of material value
  • Data transfer to EXCEL
  • Measurement of weight and density (optional)
  • 10 Pre-programmed recipes

M75 GENERAL FEATURES

Measuring Range 3-150% BS or 3-70% BU
Measuring Range 3-150% BS or 3-70% BU
USB port
USB port
Sample volume of 35 liters
Sample volume of 35 liters
Standard 802.15.4 wireless port
Standard 802.15.4 wireless port
Rechargeable 15 hour battery
Rechargeable 15 hour battery
Accuracy up to 2% to 3% (depending on material)
Accuracy up to 2% to 3% (depending on material)
5kg Equipment Weight
5kg Equipment Weight
Dimensions 350 x 400 mm
Dimensions 350 x 400 mm

Common questions

  • What types of materials can it measure accurately?

    The M75 can measure countless organic materials, as long as its density is not extremely high and its humidity does not exceed values ​​below 3% or 70%. Otherwise, its accuracy is dramatically affected.

  • How accurate is the M75?

    Its accuracy is 3%, but it can reach even more than that if it is used correctly and uses its readings to feed the database of the used recipe, thus dramatically increasing its real accuracy.

  • Does it measure inorganic materials?

    No, the equipment is made and calibrated to accurately measure organic matter. Because inorganic materials are not affected by the dielectric field generated by the equipment to be able to measure the PCU and the moisture content.

  • What is the useful life of the equipment?

    The equipment can last a long time, between 2 to 5 years without any problem. Just the punctual maintenance of it.

Sustainability

Our equipment, in addition to offering competitive and financial advantages, also helps the environment, such as:
Reduction of gas emissions by optimizing the use of industrial boilers.

Reduction of gas emissions by optimizing the use of industrial boilers.

Reduces material waste in different processes with fine control.

Reduces material waste in different processes with fine control.

Better use of raw materials with automation and automatic management of processes.

Better use of raw materials with automation and automatic management of processes.

It assists with eco-friendly decisions, due to the data offered by our equipment.

It assists with eco-friendly decisions, due to the data offered by our equipment.

It helps to use the raw material at the right time, with its moisture measurement for better use.

It helps to use the raw material at the right time, with its moisture measurement for better use.

It reduces times in the production process, speeding up the process and using less energy and biomass for burning.

It reduces times in the production process, speeding up the process and using less energy and biomass for burning.
