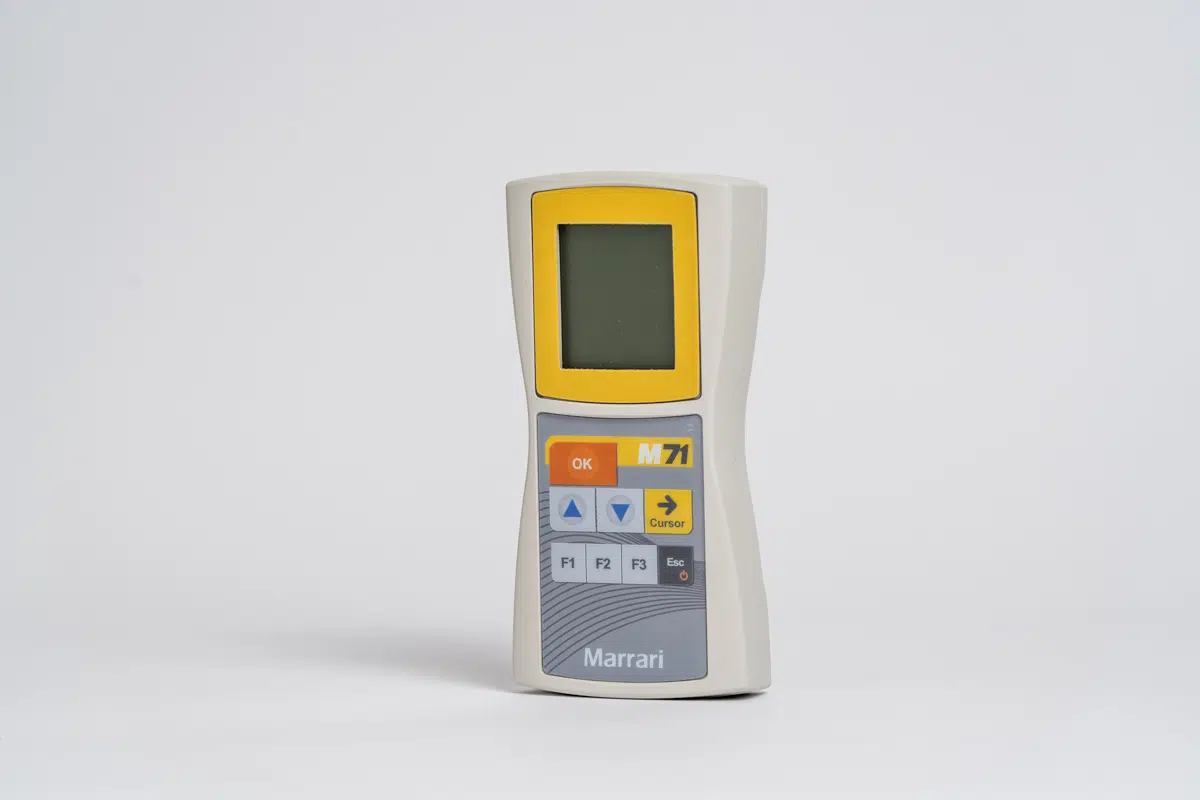

Multi-Use Moisture Meter – M71

Multi-use moisture meterer for use in plain organic products, suitable for both the laboratory and the production line.

Multi-Use Moisture Meter - M71 Quote Equipment

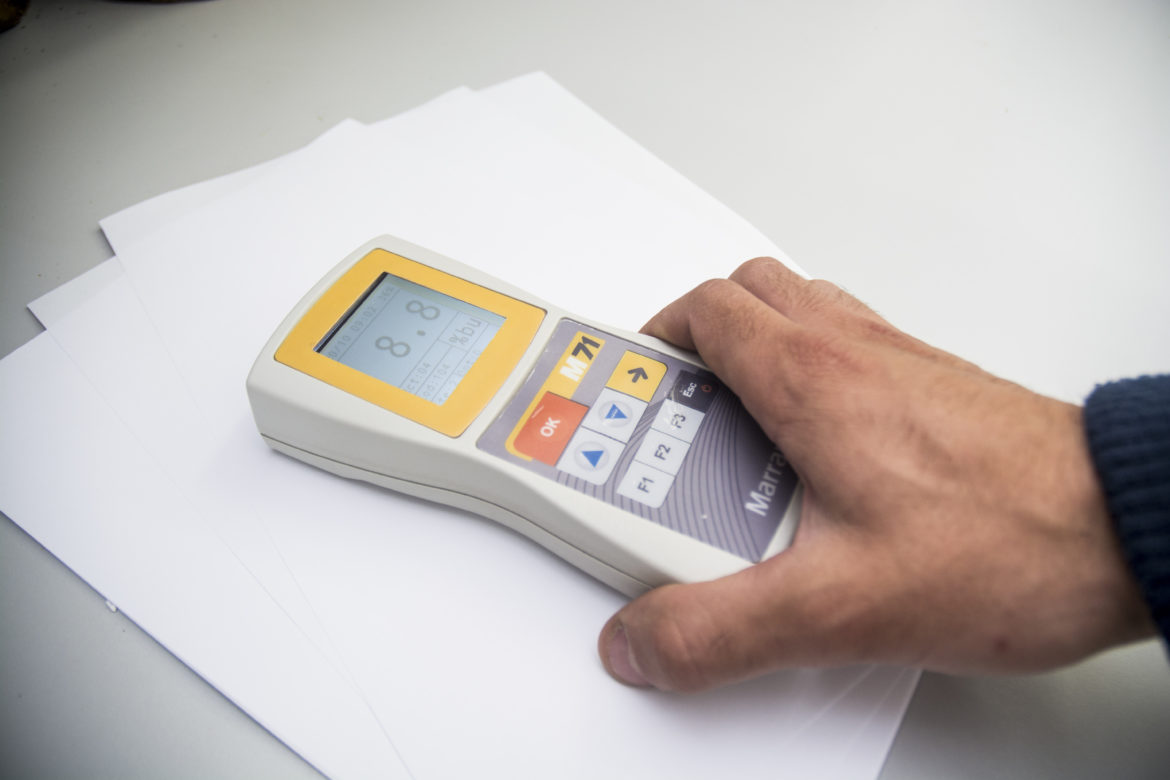

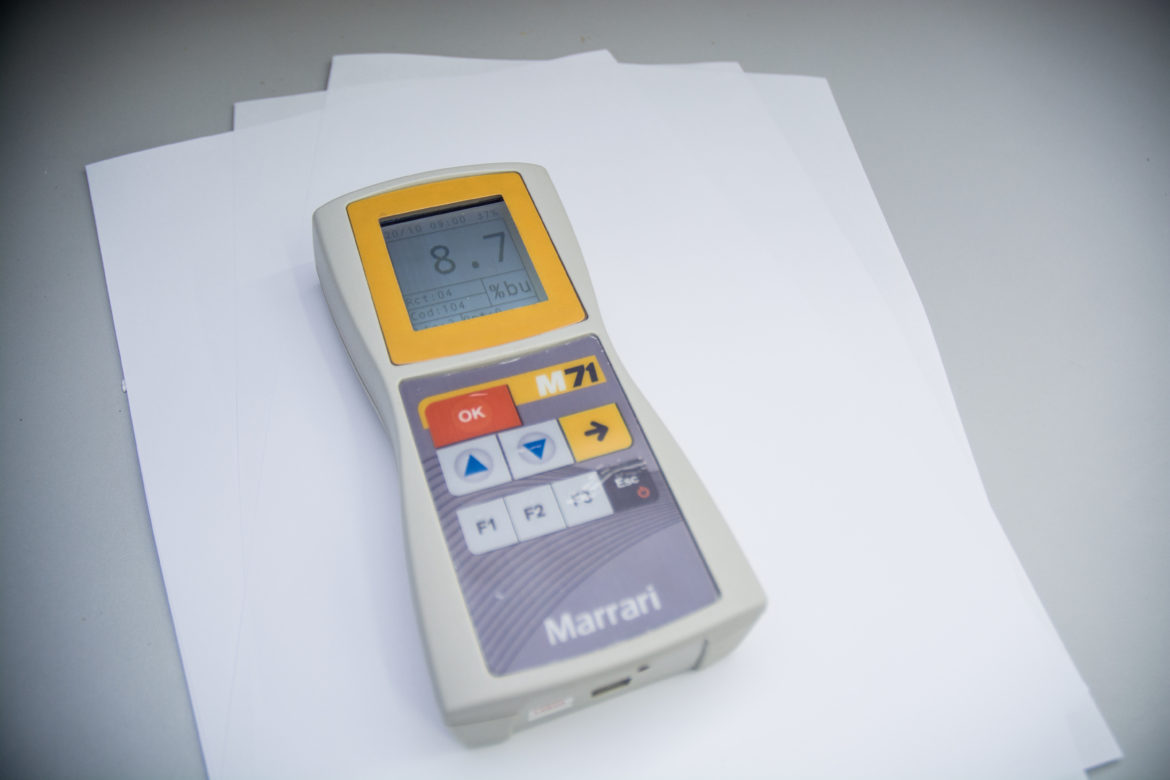

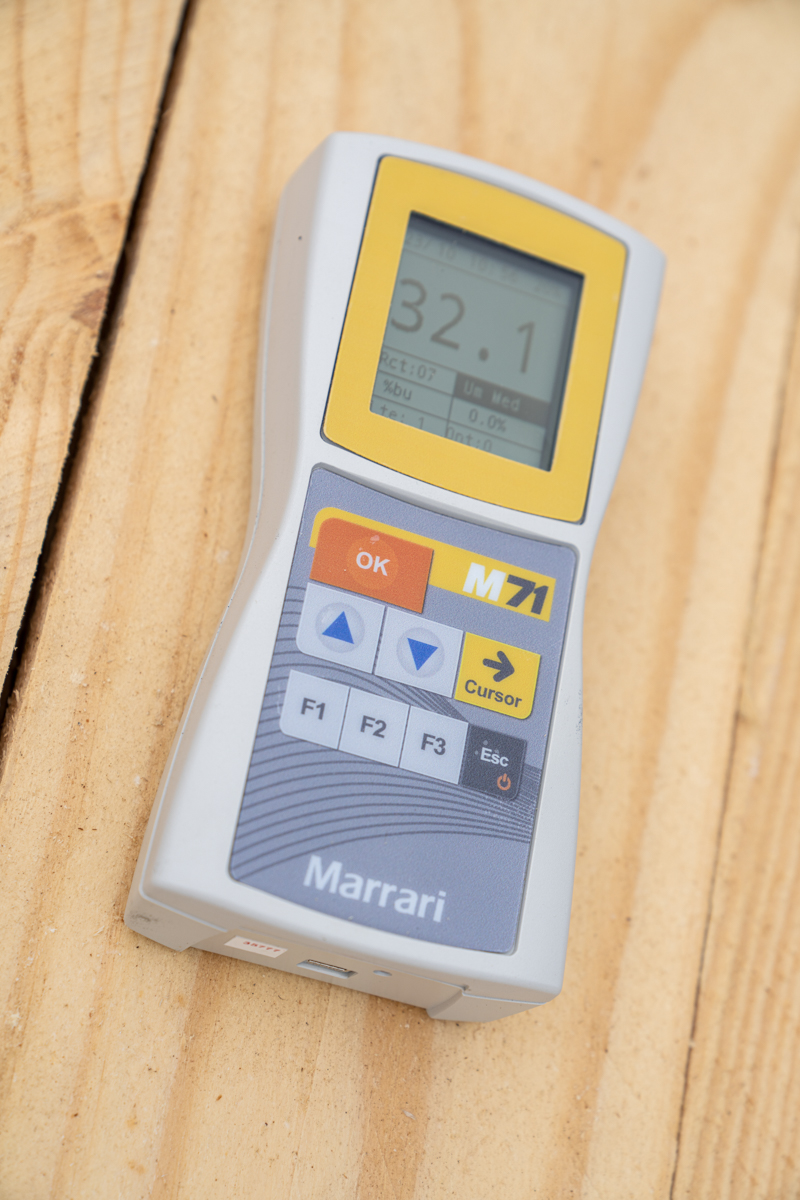

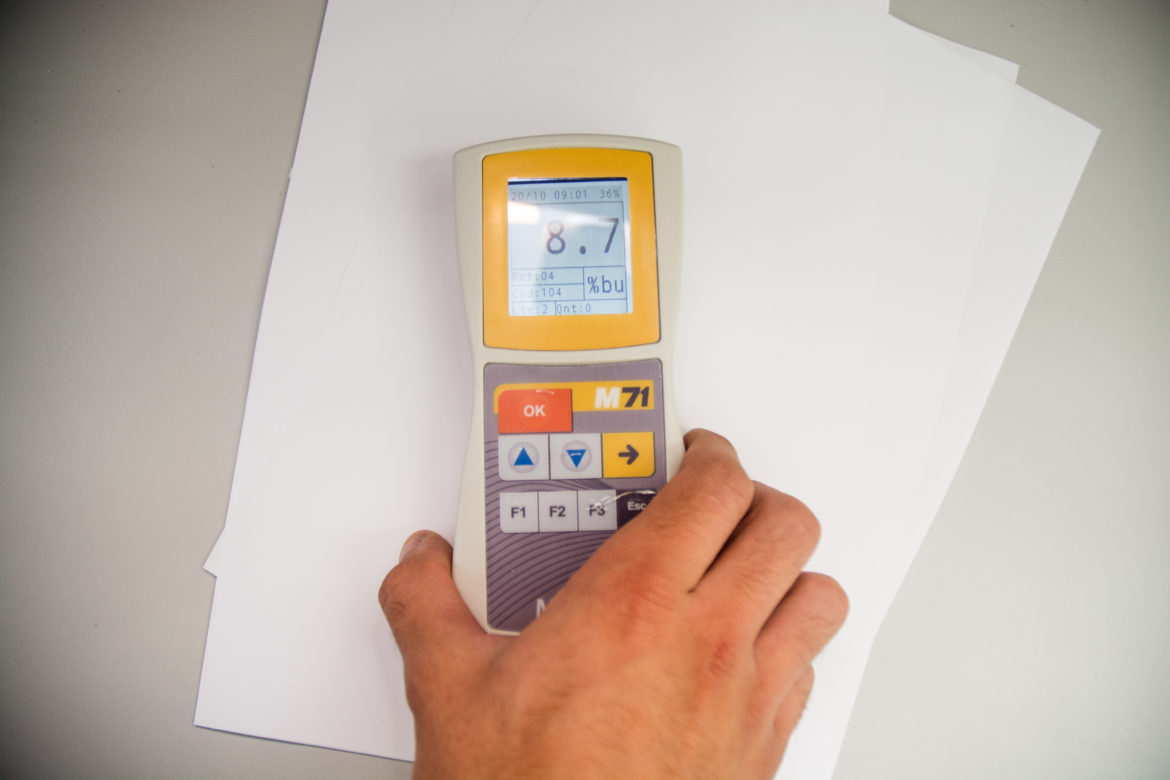

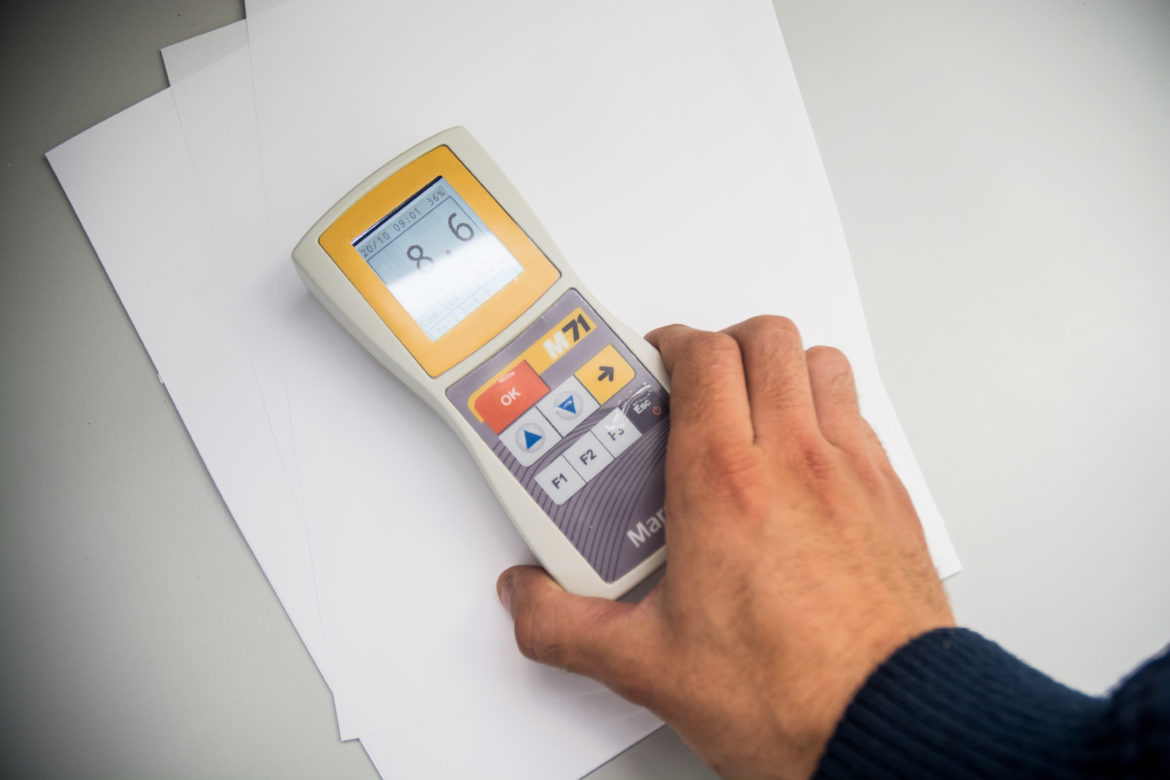

What is the multi-use moisture meter M71?

The M71 is a multi-use moisture meter due to its applicability to various surfaces. The equipment allows the configuration of multiple custom measurement functions (recipes) depending on the material, whether it be paper, panels, wood boards, blankets, and others.

But why is the ability to create recipes a differentiator?

Simply put, creating a recipe establishes a specific measurement function, improving measurement accuracy through metrological adjustment.

Thanks to this function, the more measurements you make with the multi-use moisture meter M71, the more accurate it becomes for a particular product!

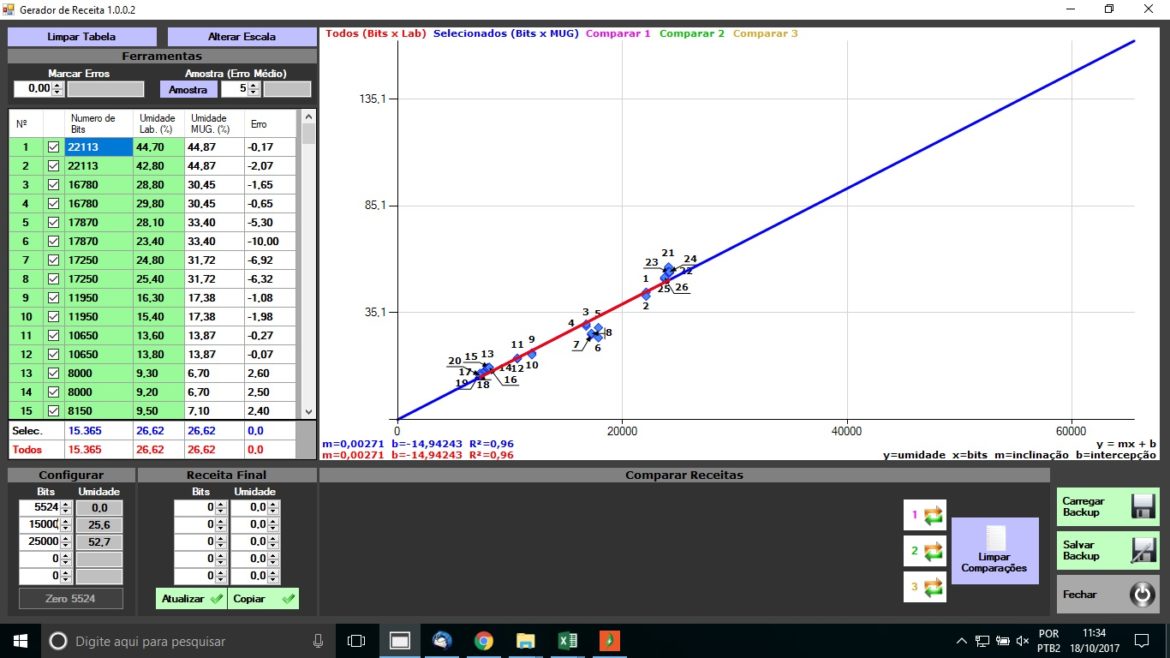

How are these recipes and calibration curves created?

Through our exclusive software, UmiData, a powerful tool for data collection and storage. UmiData analyzes bits and moisture percentages in samples to then create a specific measurement function (recipe) for a particular material.

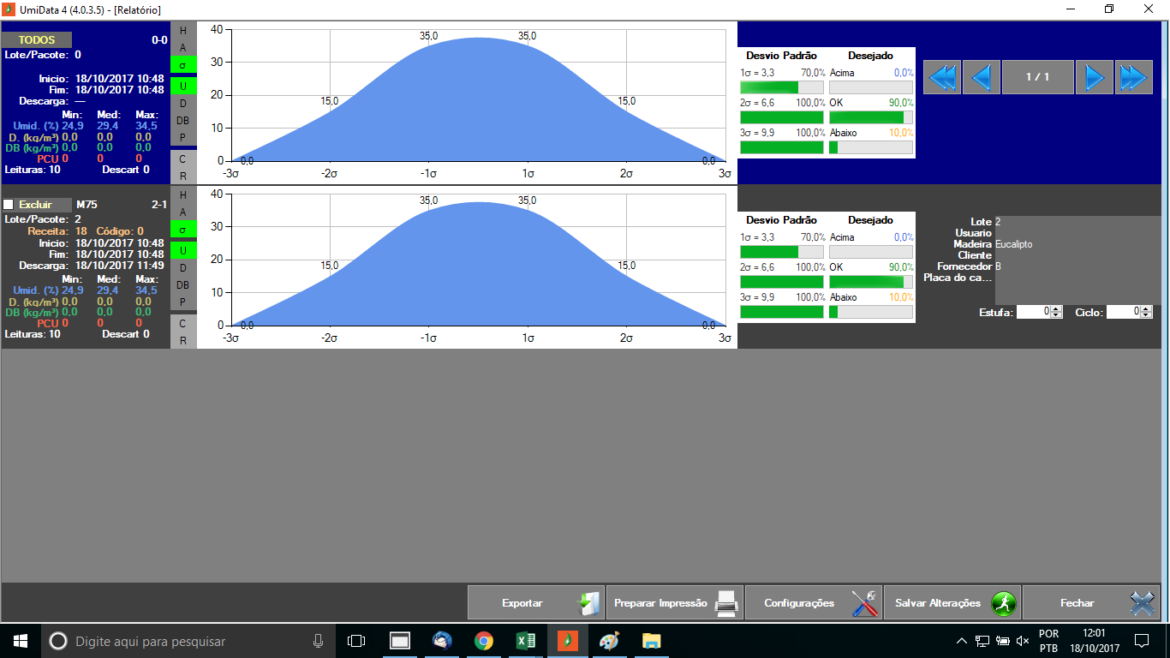

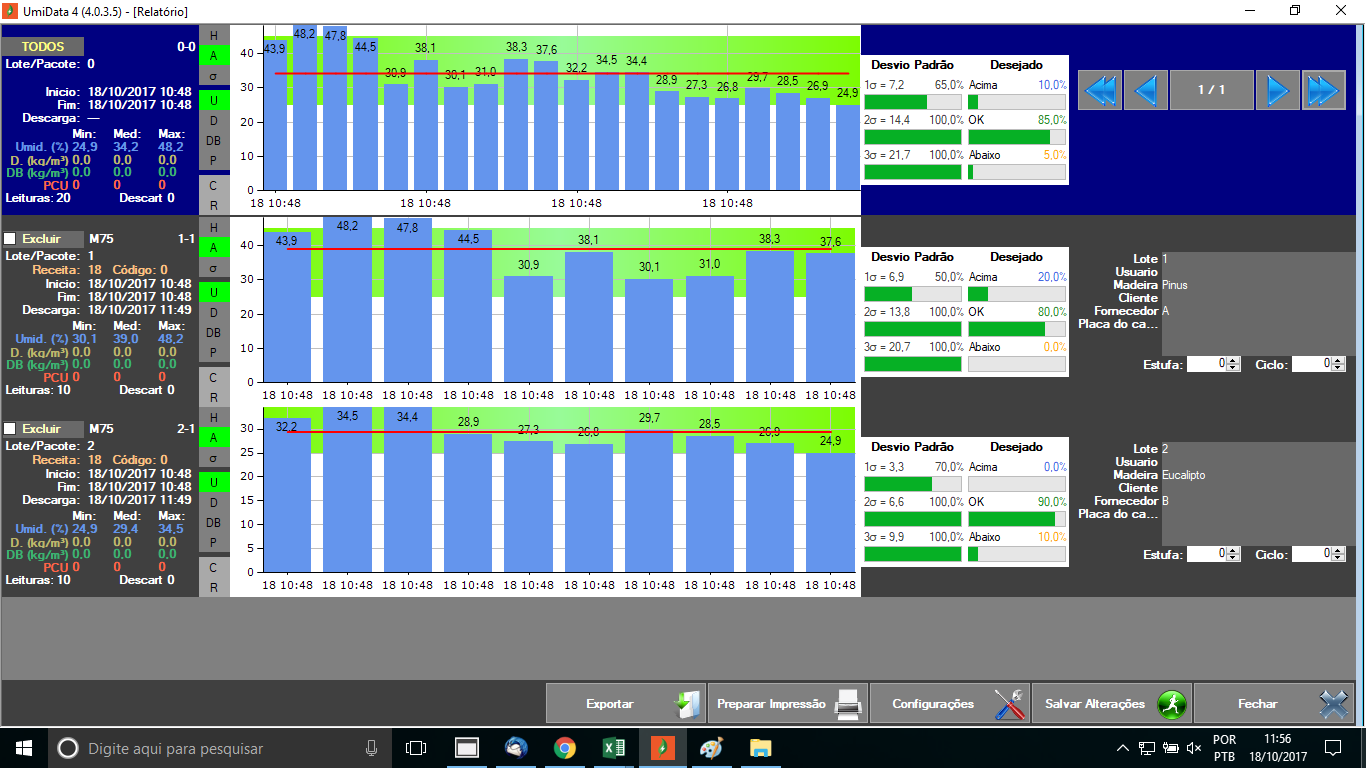

What is the UmiData software?

UmiData is a powerful tool for data collection and storage. Through this supervisory tool, it’s possible to create and analyze recipes present in the equipment.

The collected data (moisture readings) can be downloaded via USB cable to a PC to be displayed through reports, graphs, histories, and tables. In addition to the online viewing of these reports, there is also the option to export them in CSV format to be read via Excel, ensuring better optimization for your company!

UmiData

If I want to come with the meter with a ready recipe for my product?

Yes, simply send a sample to our Umilab laboratory, where we will create a unique recipe for your product and also calibrate your equipment.

Contact us to learn more!

And why use Marrari equipment?

Our equipment is optimized for your company! We create ways to improve the performance of production processes without excessive loss using methods like OEE and Industry 4.0. This creates a more effective, productive, and modern production environment!

If you want to know more about us and automation news, visit our blog, Facebook, or LinkedIn.

GUARANTEE

Marrari offers a 6-month warranty for all its systems and equipment to ensure that your process is always as productive as possible!

UmiData Server – Centralize and streamline access to moisture data

UmiData Server is a software developed by Marrari to optimize the management and integration of data generated by moisture meters. The solution enables all collected information – such as date, time, moisture readings, and other parameters – to be automatically stored in a centralized SQL database.

With this structure, any computer connected to the local network can access and query the data, eliminating the need for manual transfers or local operations on the devices. This ensures agility, traceability, and greater security in data usage.

In addition, UmiData Server simplifies integration with ERP systems and other industrial platforms, allowing Marrari meter data to be strategically used for decision-making, quality control, and process traceability.

Key benefits:

  • Centralized storage of information in a single SQL database;

  • Simultaneous access from multiple computers on the local network;

  • Fast and secure queries of historical moisture data;

  • Easy integration with corporate systems (ERP, MES, etc.);

  • Reduced manual errors and improved efficiency in data collection processes.

Ideal for industries using multiple Marrari moisture meters and seeking to automate real-time information flow, UmiData Server is a strategic tool to enhance reliability and operational performance.

M71 GENERAL FEATURES

Measuring range from 2 to 30% BU and 3 a 42,86% BS
Measuring range from 2 to 30% BU and 3 a 42,86% BS
Record readings of 1000 readings and record up to 100 batches
Record readings of 1000 readings and record up to 100 batches
Dimensions of the M71 are 150 x 250 x 120 mm
Dimensions of the M71 are 150 x 250 x 120 mm
Backlit LCD graphic display
Backlit LCD graphic display
Calibration of 20 programmable curves (10 are locked by deffault)
Calibration of 20 programmable curves (10 are locked by deffault)
Resolution of 0.1%
Resolution of 0.1%
USB port
USB port
Accuracy better than 5% of measured value
Accuracy better than 5% of measured value
Rechargeable battery
Rechargeable battery

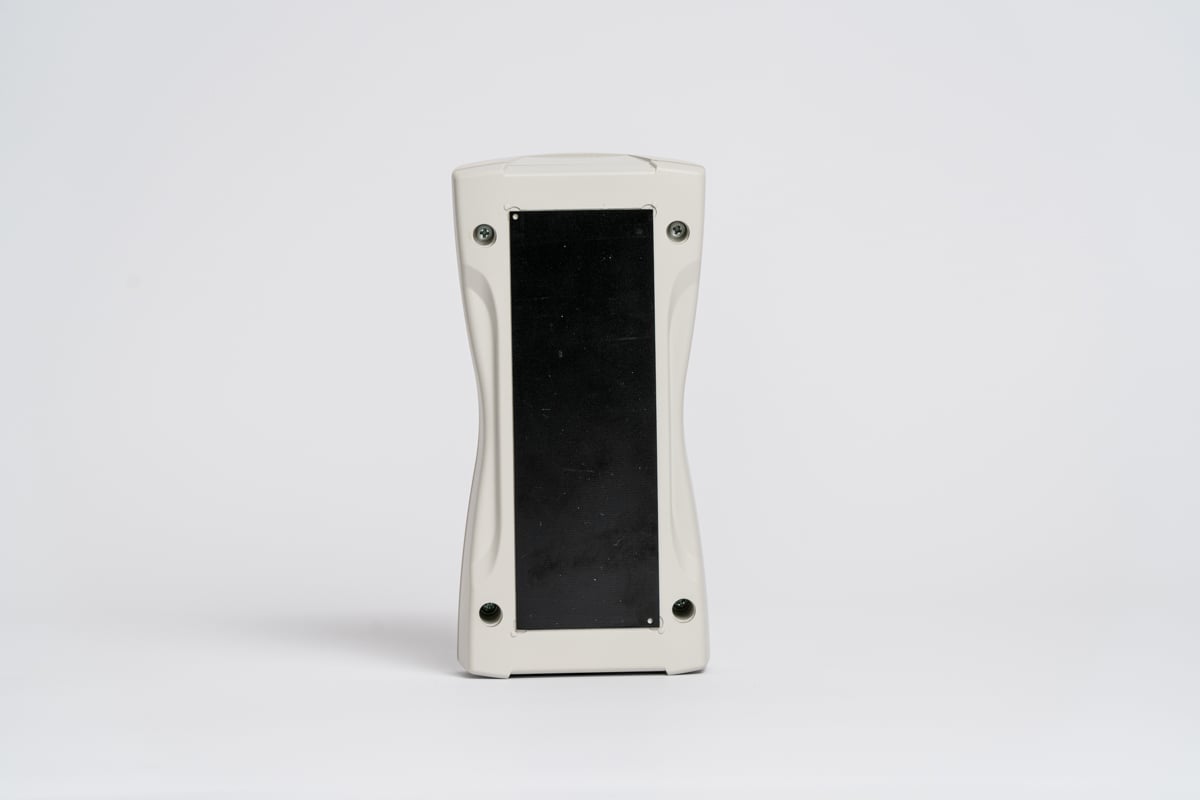

Sensor area: 130 x 75 mm
Sensor area: 130 x 75 mm
Weight of 700g
Weight of 700g

Common questions

  • Why use a moisture meter?

    With the use of a moisture meter in your process, it is much easier, faster and more practical to measure the humidity of the product you are manufacturing to certify its quality or the need for other treatments to ensure that the final product is uniform.

  • How to use the moisture meter?

    With Marrari gauges it is easy: there is no need to pin or drill the material. Just select the recipe or density of the wood (for wood moisture meters), place the meter on the material surface and that's it: the moisture will be shown on the display.

  • Does it measure materials that are not organic?

    No, our meters are calibrated and made with only organic materials in mind. Because the measurement method is more accurate with these types of material.

  • Can I calibrate the meter myself?

    Yea! With the UmiData software you can calibrate, receive reports, generate reports and check the measurement history from your computer. And if you need help, you can count on Marrari after sales to teach you how to use the software and calibrate the equipment.

Related products

Medidor de Umidade de Madeira Portátil - M55-56 Espada
Wood Moisture Meter – M55-56 Sword

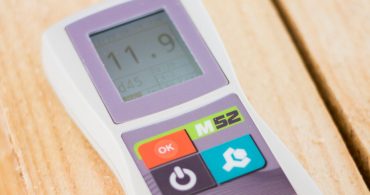

Medidor de Humedad Portátil para Madera - M52
Wood Moisture Meter – M52

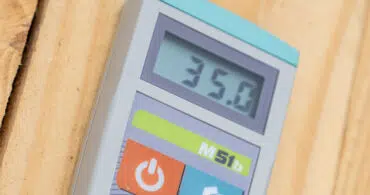

Medidor de Umidade Portátil de Madeira M51b
