Wood Kiln Drying Manager – Ecopower

This is the most advanced system for wood drying control available on the world market.

Wood Drying Manager - Ecopower Quote Equipment

What is the Ecopower wood kiln drying manager?

Ecopower’s wood kiln drying manager is the most advanced wood drying control system available on the world market. In addition to the control of each dryer, Ecopower manages and optimizes the energy used in the process, greatly reducing the consumption of thermal and electrical energy.

Why is ecopower a world benchmark?

Because it uses the latest technologies in the monitoring requirements of the dryer and boiler, ensures smooth operation of the boiler resulting in steam economy, intelligent control of the starter and reversal of the fans among others numerous resources available in the supervision software.

How does ecopower guarantee the economy of steam and energy?

It ensures savings by reducing the use of steam and electricity. As noted above, it has monitoring routines that ensure smooth operation of the boiler, resulting in a steam economy, spending less on biomass or electricity to keep the boiler running at adequate pressure.

How does ecopower guarantee the quality of the final product?

Ecopower has soft drying curves, which makes the wood in its drying process non-thermal shock during phase changes. Securing a always flat wood, without having or bursting.

In addition to the soft-drying curves, it has water and steam bath features that ensure that the final quality of the product is always high.

And why use Marrari equipment?

Because our team is optimized for your company! We create ways to improve the performance of production processes without excessive loss using methods such as OEE and Industry 4.0. Creating a more efficient, productive and modern production environment!

If you want to know more about us and our meters, controlers and mannagers, visit our Facebook or LinkedIn.



Want to know more technical information about the product? Check below for more information and ask for a quote!

MR500 FAMILY V8.0

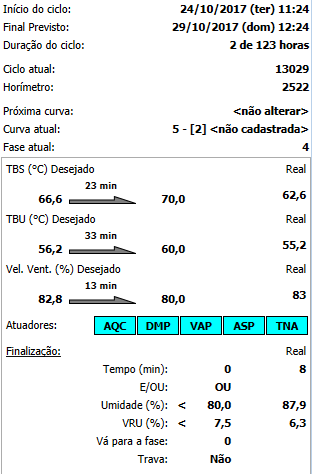

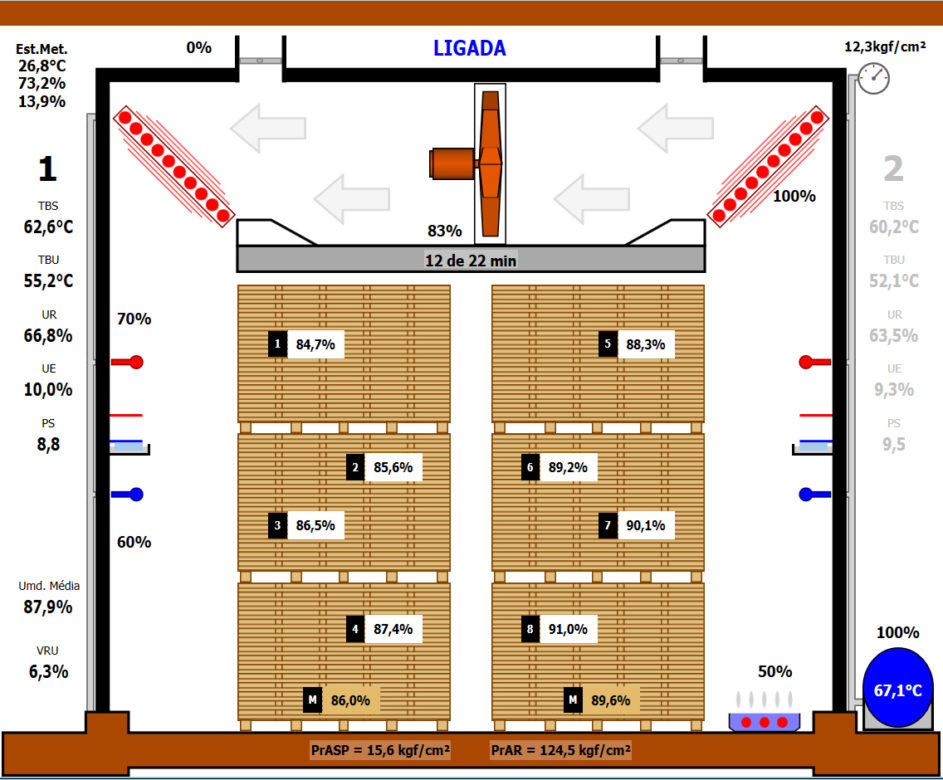

  • Monitoring of control variables (desired x Real);
  • Monitoring the position of the actuators;
  • Decimal house in all monitored quantities;
  • Smooth transition between phases;

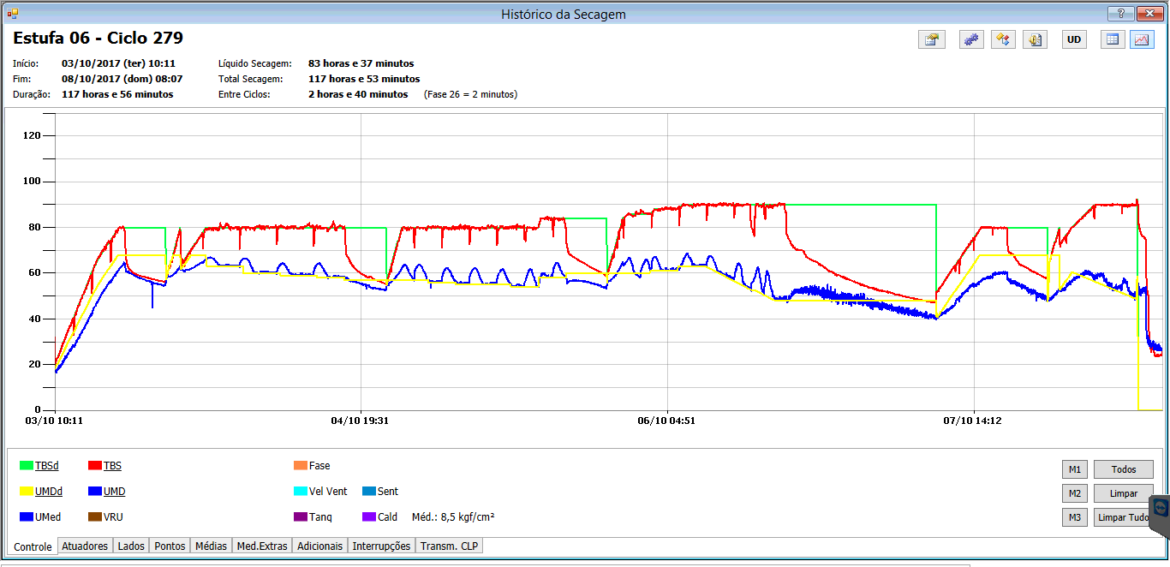

  • Record in the database minute by minute;
  • SQL Server database;
  • Multiuser access via local area network or internet;
  • Access register; Recording Software from the PLC remotely (via internet);
  • Restore CLP memory;
  • Compatible with different types of greenhouses;
  • Compatible with different actuators (on / off proportional / motorized);

ECOPOWER'S GENERAL CHARACTERISTICS

25 Programmable drying phases
25 Programmable drying phases

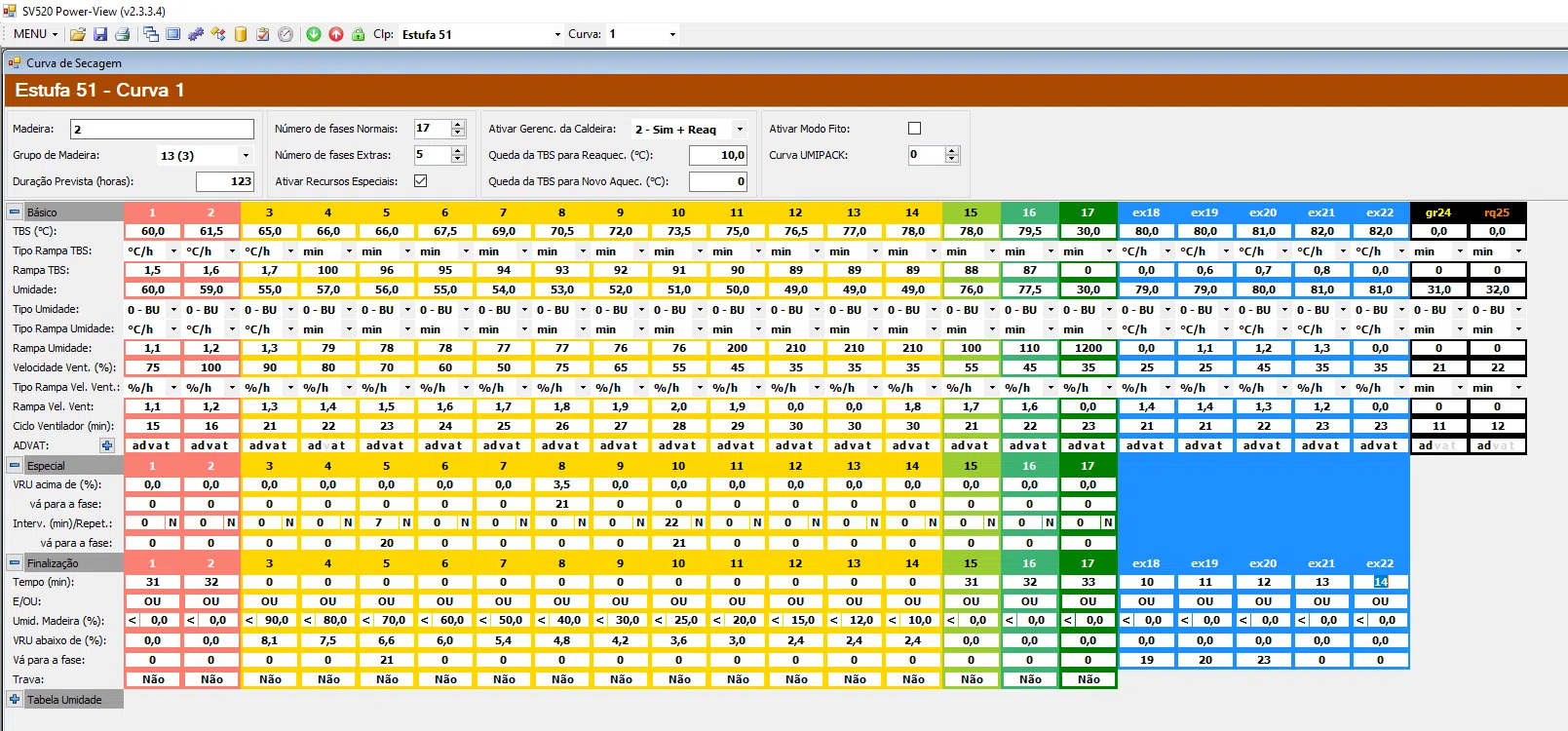

Curve programmable by TBS x TBU / TBS x UR / TBS x UE / TBS x PS
Curve programmable by TBS x TBU / TBS x UR / TBS x UE / TBS x PS
Steam Consumption Manager
Steam Consumption Manager
Stages of Heating, Drying, Uniformization, Conditioning, Cooling
Stages of Heating, Drying, Uniformization, Conditioning, Cooling
Independent Activation of Actuators
Independent Activation of Actuators
Fan Manager
Fan Manager
Extra Conditioning Phases
Extra Conditioning Phases
Independent speed, fan cycle and bath time per Phase
Independent speed, fan cycle and bath time per Phase
Smart Damper (heating aid)
Smart Damper (heating aid)
Ramp reheat phases
Ramp reheat phases
Use of VRU to perform Phase Conditioning and Termination Phases
Use of VRU to perform Phase Conditioning and Termination Phases
Intelligent Fan Reversal
Intelligent Fan Reversal
New Heating Feature (Phase 1) after long stops
New Heating Feature (Phase 1) after long stops
Economical Drying Mode
Economical Drying Mode

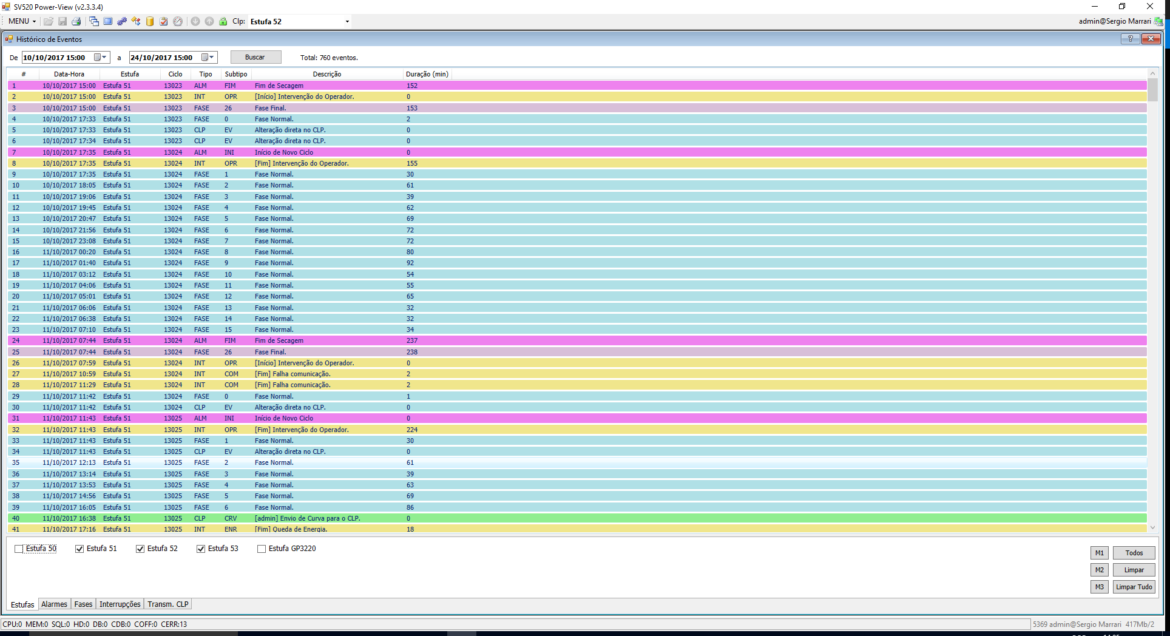

EVENT REPORTS

Phase switching
Phase switching
Alarm log
Alarm log
Records interruptions, power outage, operator, maintenance
Records interruptions, power outage, operator, maintenance
Sends Parameters to the PLC with identification of the responsible personel
Sends Parameters to the PLC with identification of the responsible personel

OPTIONAL SENSORS

Boiler Pressure
Boiler Pressure
Weather Station: Relative Temperature / Humidity
Weather Station: Relative Temperature / Humidity
Sprinkler Pump Pressure
Sprinkler Pump Pressure
Extra 1 / Extra 2 (4-20mA Miscellaneous Sensors)
Extra 1 / Extra 2 (4-20mA Miscellaneous Sensors)
Compressed Air Line Pressure
Compressed Air Line Pressure
Vapor Flow
Vapor Flow
Sprinkler Hot Water Temperature
Sprinkler Hot Water Temperature
Electric power consumption
Electric power consumption

Optional Accessories

Phytosanitary Report
Phytosanitary Report
Measurement of Wood Moisture per Package: UMI-PACK
Measurement of Wood Moisture per Package: UMI-PACK

Common questions

  • Why automate and manage wood drying?

    Because with the automation of drying, our managers and controllers are able to assist in generating savings in steam and energy. In addition to reducing drying times, reducing scrap and increasing the quality of the wood using software and fine adjustments throughout the drying process.

  • What are the main benefits of this automation?

    The benefits are several, but the main ones are the saving of steam and energy, reduction of drying times, reduction of material waste and increase in the final quality of the product. All this due to the high technology embedded in the equipment to manage the entire process.

  • And will this improve the quality of my wood?

    Certainly! With all the automation of the greenhouse, the controller / manager is able to adjust all the drying so that the final product is exactly as you expect.

  • And how does Marrari guarantee all this?

    Easy! With 30 years in the market and experience in wood drying, our technology is tuned for all the details of drying. In addition to offering support, courses and consultancy with the partner company: CPM Suporte.

Sustainability

Our equipment, in addition to offering competitive and financial advantages, also helps the environment, such as:
Reduction of gas emissions by optimizing the use of industrial boilers.

Reduction of gas emissions by optimizing the use of industrial boilers.

Reduces material waste in different processes with fine control.

Reduces material waste in different processes with fine control.

Better use of raw materials with automation and automatic management of processes.

Better use of raw materials with automation and automatic management of processes.

It assists with eco-friendly decisions, due to the data offered by our equipment.

It assists with eco-friendly decisions, due to the data offered by our equipment.

It helps to use the raw material at the right time, with its moisture measurement for better use.

It helps to use the raw material at the right time, with its moisture measurement for better use.

It reduces times in the production process, speeding up the process and using less energy and biomass for burning.

It reduces times in the production process, speeding up the process and using less energy and biomass for burning.
